Operating on IEDs

iedctrl is a command-line utility to perform control operations on IEC61850 IEDs. Supports selecting, operating, and optionally querying values after execution.

Usage

ied_operate.py -t [LDName/]LNName.[FC].DataName --value VALUE [--check] <host>
ied_operate.py -t [LDName/]LNName.[FC].DataName --toggle [--check] <host>

Examples

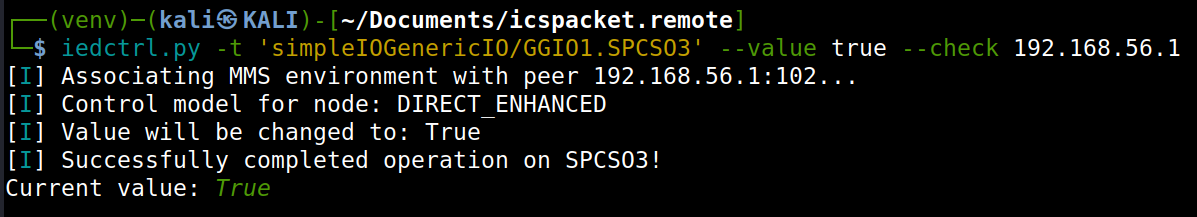

Operate a control object with a specific value:

../../_images/iedctrl-operw.png

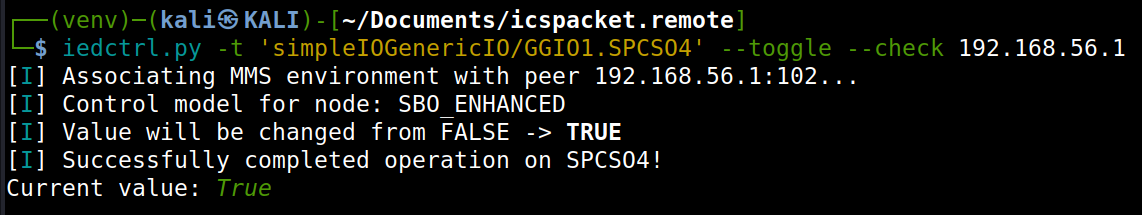

Toggle a boolean control object:

../../_images/iedctrl-opertoggle.png

Notes

  • The target argument supports specifying logical device (LD), logical node (LN), functional constraint (FC), and data name. If the LD is omitted, the default LD will be queried first.

  • JSON is used to represent structured values. Files containing JSON can also be passed instead of inline JSON strings.

  • The --check option ensures the tool reads back the value after the control operation to verify success.
